The perfect solution to multi-option showering. Thermostatically controlled. Round shower head. Round handset. Thermostatic control to +/- 2 degrees even if the water pressure fluctuates. In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding. Suitable for high pressure water systems. Suitable for combi-boilers and gravity-fed systems. Suitable for unvented mains pressure systems. Suitable for shower pumps. Manufactured from high quality brass.

– Product Weight: 3.9700 kg

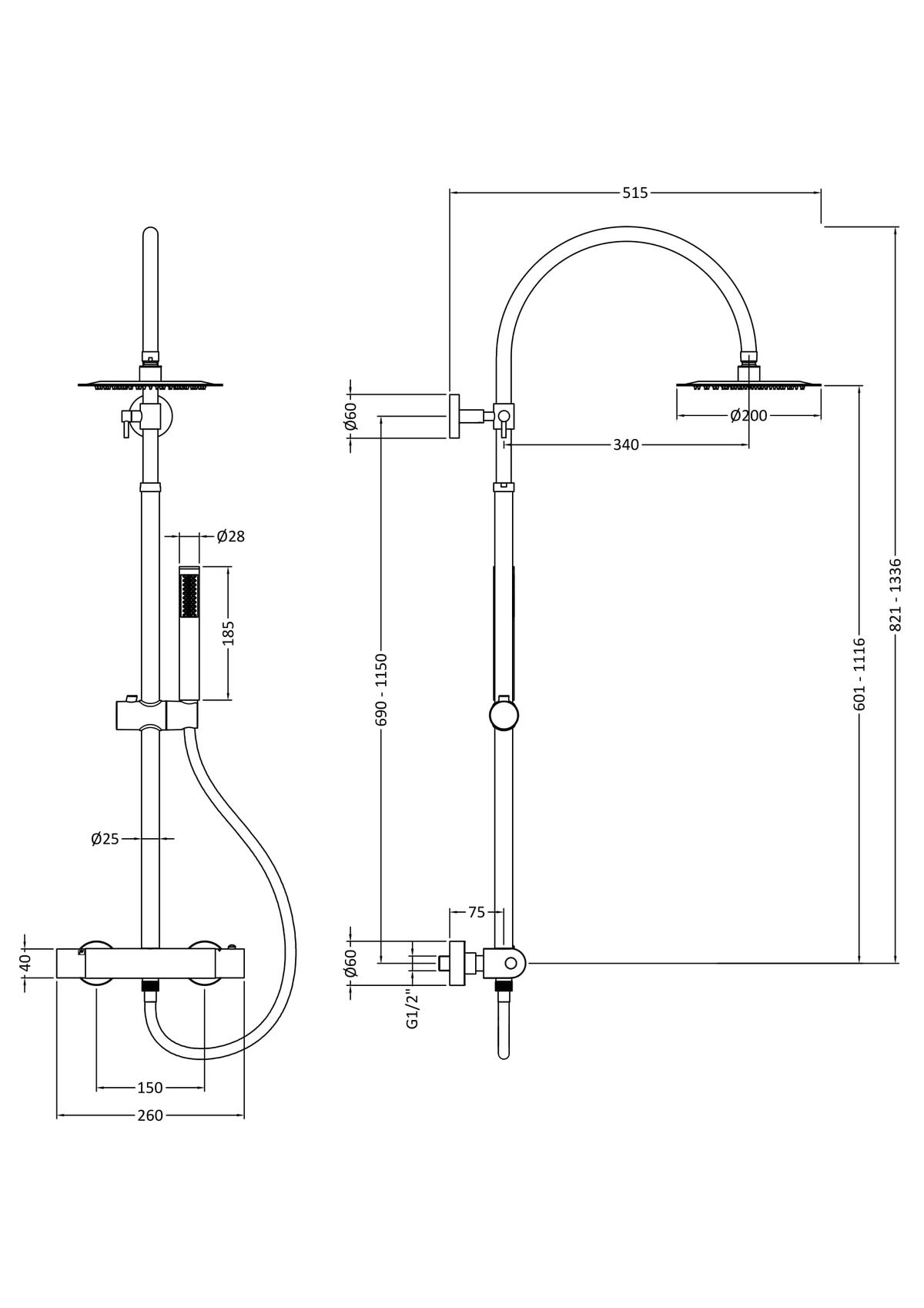

– Product Height: 1336 mm
– Product Width: 260 mm
– Product Depth: 415 mm
– Mount Type: Surface/Wall
– Minimum Operating Pressure (Bar): 0.5 Bar
– Valve/Cartirdge Type: 1/4 Turn
– WRAS Approved: Yes
– WRAS Approval Number: 2307019
– TMV2 Approved: No
– TMV3 Approved: No
– Flow Rate at 0.5 Bar (L/min: 7.5000
– Flow Rate at 1 Bar (L/min: 11.0000
– Flow Rate at 2 Bar (L/min: 16.5000
– Flow Rate at 3 Bar (L/min: 21.0000
– Pipe Centres: 150
– Packaged Weight: 4.5000 kg
– Packaging Length: 955.0000 mm
– Packaging Width: 400.0000 mm
– Packaging Height: 165.0000 mm
– Shipping Load Type: Standard Parcel
