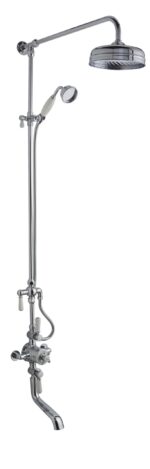

Combining the elegance of traditional styling with the precision and technology of modern day design. Includes rigid riser kit and bath spout. Accurate flow control. Thermostatic control to +/- 1 degree – even if the water pressure fluctuates. Full thermal protection to prevent scalding in the event of hot or cold water shut off. In the event of hot or cold water failure the valve will shut down as per the relevant standard. The unique cartridge is highly resistant to calcium build up – even in hard water areas. Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers. Excellent flow rates – even at low pressure. Our valves can deliver 5.5 litres per minute at 0.1 bar pressure. The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing. Simply remove the cartridge turn 180° and replace. Manufactured from solid brass.

– Product Weight: 15.0000 kg
– Product Height: 1440 mm
– Product Width: 195 mm
– Product Depth: 667 mm
– Mount Type: Wall Hung
– Handle Type: Crosshead/Lever
– Minimum Operating Pressure (Bar): 0.5 Bar
– Valve/Cartirdge Type: 1/4 Turn
– WRAS Approved: No
– TMV2 Approved: No
– TMV3 Approved: No
– Flow Rate at 0.1 Bar (L/min): 4.5000
– Flow Rate at 0.5 Bar (L/min: 13.0000
– Flow Rate at 1 Bar (L/min: 18.5000
– Flow Rate at 2 Bar (L/min: 26.0000
– Flow Rate at 3 Bar (L/min: 33.0000
– Pipe Centres: 150
– Packaged Weight: 15.0000 kg
– Packaging Length: 1100.0000 mm
– Packaging Width: 260.0000 mm
– Packaging Height: 175.0000 mm
– Shipping Load Type: Standard Parcel
