Minimalist sleek design. Can be fitted vertically or horizontally. Accurate flow control. Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates. Full thermal protection to prevent scalding in the event of hot or cold water shut off. In the event of hot or cold water failure the valve will shut down as per the relevant standard. The unique cartridge is highly resistant to calcium build up – even in hard water areas. Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers. Excellent flow rates – even at low pressure. The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing. Simply remove the cartridge turn 180° and replace. Manufactured from high quality brass & ABS.

– Product Weight: 5.5700 kg

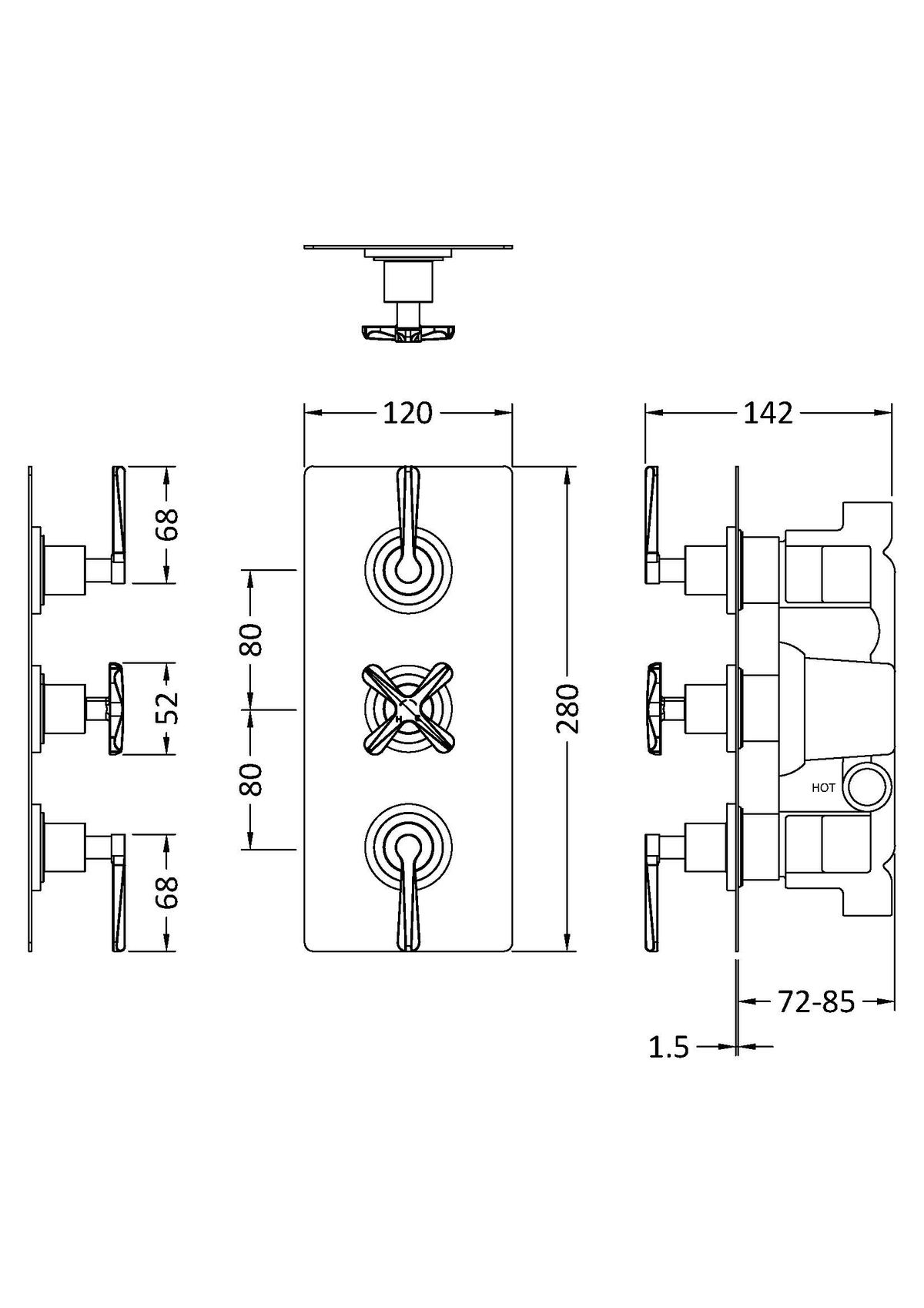

– Product Height: 280 mm
– Product Width: 120 mm
– Product Depth: 136 mm
– Mount Type: Recessed/Wall
– Handle Type: Crosshead/Lever
– Minimum Operating Pressure (Bar): 0.5 Bar
– Valve/Cartirdge Type: 1/4 Turn
– WRAS Approved: Yes
– WRAS Approval Number: 250602040
– TMV2 Approved: No
– TMV3 Approved: No
– Flow Rate at 0.5 Bar (L/min: 13.0000
– Flow Rate at 1 Bar (L/min: 17.0000
– Flow Rate at 2 Bar (L/min: 24.0000
– Flow Rate at 3 Bar (L/min: 27.0000
– Packaged Weight: 5.7700 kg
– Packaging Length: 320.0000 mm
– Packaging Width: 250.0000 mm
– Packaging Height: 110.0000 mm
– Shipping Load Type: Standard Parcel
